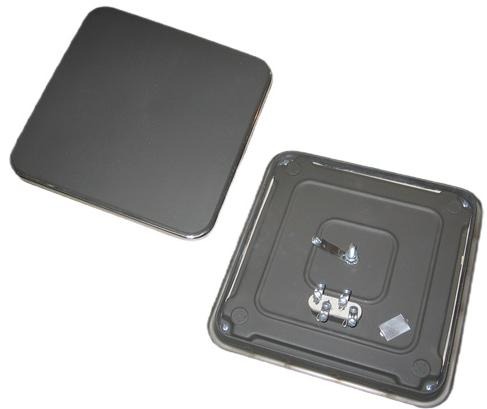

SQUARE HOTPLATES

Mainly used for commercial appliances

DESCRIPTION

Square electric hotplates are mainly utilized for professional cooking stoves which are used for preparing substantial amounts of food. They are used for cooking or frying in kitchens of hotels, motels, nursery schools, hospital, etc. Thanks to their high resistance to moisture, square hotplates can be safely used in conditions of high humidity. Therefore, they are suitable for ships and facilities along rivers, lakes and the sea. Hotplates are made of cast iron and installed on the previously prepared metal construction of the stove with adequate holes for putting in and with adjustable supports. Hotplates are connected to electrical wiring by an electric switch, and heat resistant conductor, according to the electric scheme. Built-in temperature limiter protects plates from overheating. Power is regulated by more-position switches.

APPLICATIONS

  • Commercial appliances
  • Laboratory equipment
  • Industrial equipment
  • Household appliances

Technical data

Type of heating

Contact heating

Material

Cast iron

Dimension

220x220mm - Rounded edges

300x300mm - Rounded edges
300x300mm - Sharp edges
300x300mm - Sharp edges - Dumper

400x400mm - Sharp edges

Assembly

The plates rest on the adjustable supports

Connection

Screws and nuts, 4 connection outlets
Electrical grounding is executed

Design

Standard range or acc. to customer specification

Rounded edges - with a ring
Sharp edges - without a ring

Dumper version available

Other

Voltage: 115V, 230V single-phase, 400V three-phase
Power: 2000-7000W

Regulation: Switch with four positions (0-1-2-3), Switch with seven positions (0-1-2-3-4-5-6), Built-in temperature limiter

Benefits

  • Rugged and compact construction
  • Soft and uniform heating
  • Heat accumulation
  • Large mass and high inertia
  • Optimised heat transfer
