SUpported wire elements
Wires, ribbons or coils between isolated points
DESCRIPTION

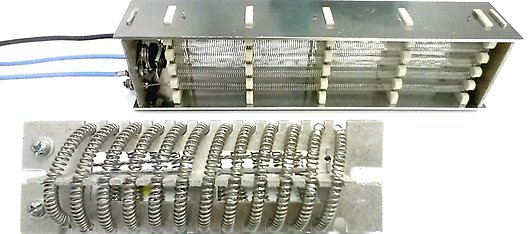

Elektrotermija manufactures supported wire and coil elements in a wide range. The wire, ribbon or coil are mounted freely between insulated points and are exposed to the mechanical stress caused by its own weight and its own spring force. The best example is the element with open coils for use in tumble dryers. We also produce elements for heating curtains and fan heaters, to mention a few examples. Temperature control is achieved with thermostats and/or thermal cut-offs.
APPLICATIONS
- Tumble driers, laundry dryers
- Hair dryers, hand dryers
- Heating curtains
- Hot air guns, tool heating
- Fan heaters, convectors, radiators
- Low-watt heaters
- Toasters, steam generators
Technical data
Type of | Radiation |
Material | Heater: FeCrAl alloys or NiCr alloys |
Dimension | Acc. to customer specification |
Assembly | Adapted for the application |
Connection | Flat pin connectors |
Design | Suspended coils |
Others | One, two or three wattage ratings/element Regulation: External thermostat and thermal cut-off |
BENEFITs
- Low weight
- Fast heating
- Wide range of element types
- Sizes according to customer request
- Possible high surface load
