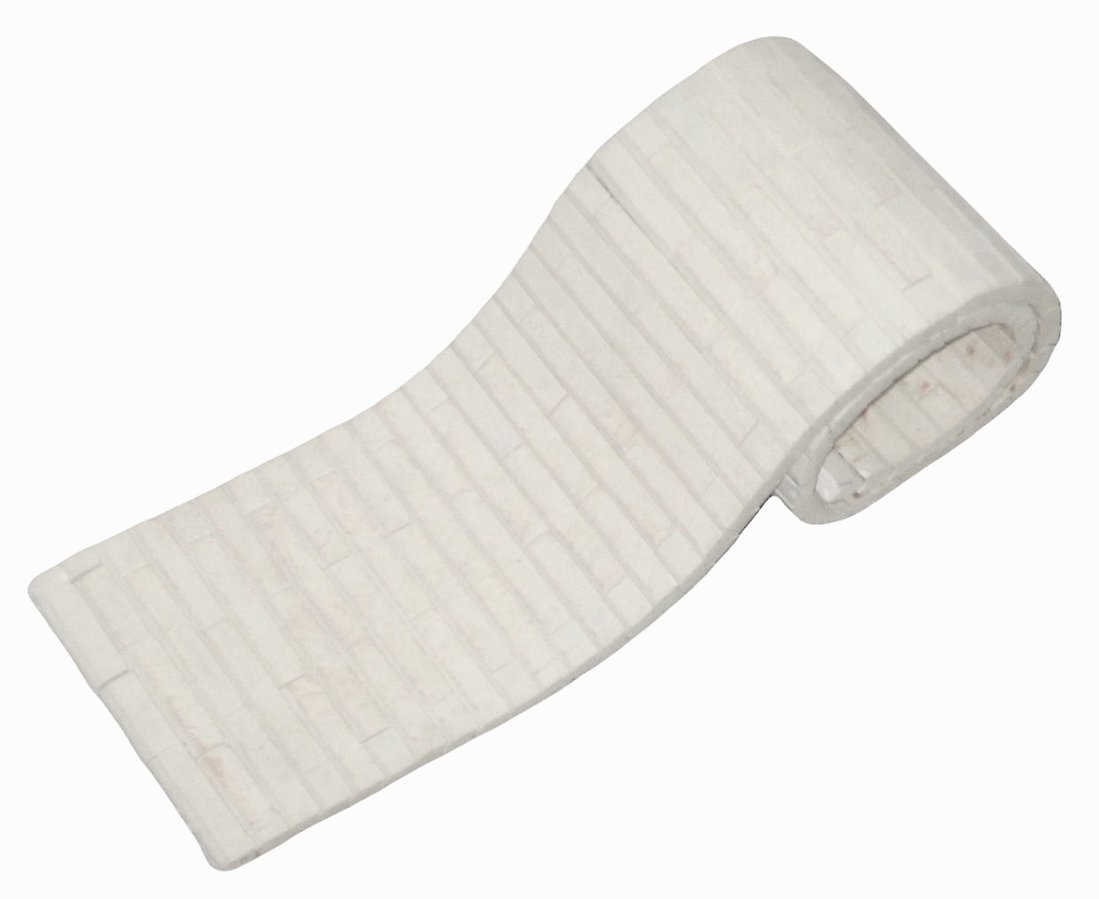

Flexible ceramic heaters
Robust but also thin and bendable
DESCRIPTION
Flexible ceramic heaters are used for indirect heating of liquids or contact heating of solids. For these applications, the ceramic element is usually fixing to the object, assembled into sheet metal casing or mounted in a tube. Elektrotermija produces flexible ceramic heaters according to customer specifications. Resistance coils are placed in longitudinal holes on flat thin ceramic segments. This type of heater can be mounted as flat or as rounded, depending on the shape of the object. Heat is transferred by radiation, conduction and natural convection.
APPLICATIONS
- Ring and band heaters
- Extruders
- Injection machines
- Containers, tanks
- Moulds, tools
- Indirect heating of liquids
Technical data
Type of heating | Contact heating |
Material | Cordierite C520 |
Dimension | Heater length: Acc. to customer specification |
Assembly | Fixing to the object |
Connection | Nickel wires, connection wires with ceramic beads or silicon rubber hose |
Design | Acc. to customer specification |
Other | Surface load: Max. 4 W/cm² |
Benefits
- Flexible, can be bent around
- Possible shape varieties
- Fast heat-up
- Optimal and uniform heat transmission
- Dimensions, power and voltage upon request
