Tubular elements air & gases
Wide selection of element sizes and types
DESCRIPTION

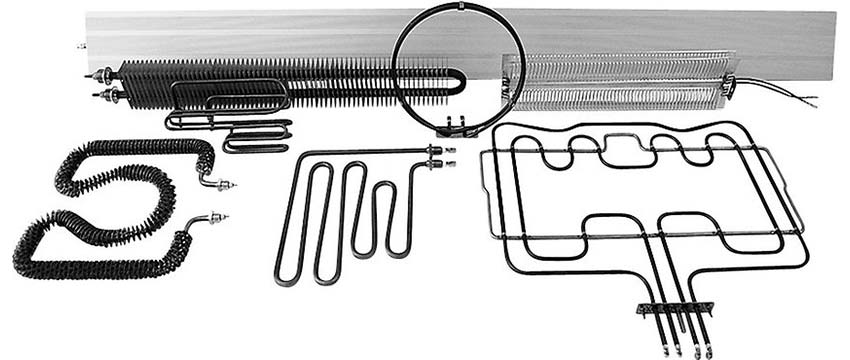

Years of experience and constant production improving have resulted in wide range of different tubular electric heating elements. These elements are the most common and the cheapest solutions for various needs. Elektrotermija produces tubular heating elements both for household appliances and for industry and special applications. We produce air tubular electric heating elements with mounted electrical and mechanical connections. These elements are made in straight or bend shape according to customers needs. Stainless steel tubular heating elements are the most versatile and the most represented product of electric heating industry and are foundation for production of numerous heating systems such as duct heaters, flow heaters, power resistors and many, many more. All elements are tested according to EN 60335-1.
APPLICATIONS
- Household appliances
- Radiators, Convectors, Fan heaters
- Hot-air curtains
- Horeca industry, Professional kitchens
- Industrial furnaces, dryers, ovens
- Frost protection, Anti-freeze devices
- IR-heaters, Saunas
- Power resistors
- Railway switch points
- Train compartment heaters
Technical data
Type of heating | Forced or natural convection |
Material | Tube material - Stainless steel: Strip: Stainless steel AiSi 430 /EN 1.4016 |
Dimension | Standard range or acc. to customer specification Tube diameter: Ø6.5, Ø8.5, Ø10, Ø12, Ø14mm Other dimensions avaliable upon request |
Assembly | Fixing to the object with flanges/nipples, fixing plates, etc. acc. to customer specification Great variety of standard solutions |
Connection | M4, M5, M6, Tab terminals, Round pins, Cables, Nickel leads, Vulcanized terminals, Terminal boxes |
Design | Round tubular heating elements Custom made elements as per customer request, drawing, sample, idea... Different shapes acc. to customer specification |
Others | Voltage: Max 480V, for higher values consult us |
