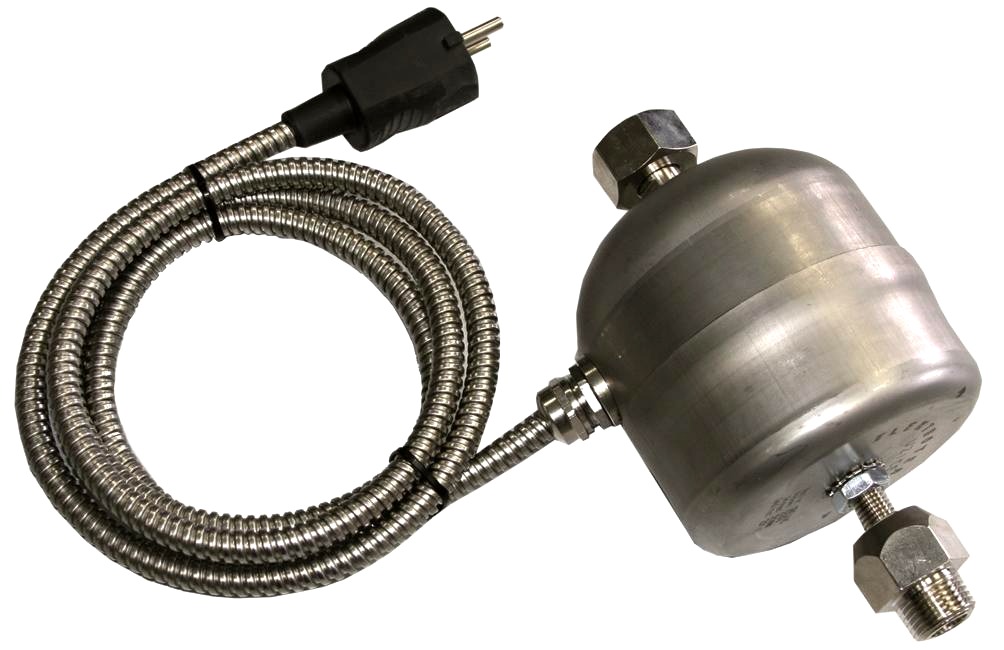

Gas pre heaters

For gas cylinders and manifold systems

DESCRIPTION

Elektrotermija produces heaters for inert and non-corrosive gases. Gas pre heater is thermostatically controlled and designed to prevent gas regulator freezing and gas diaphragm cracking due to high flow conditions. It extends service life of regulator and prevents malfunctions or interruptions. This heater is installed between the gas cylinder and the regulator, and warms the gas stream allowing increased flow. The operator should allow a time period of 5-10 minutes for warming up before turning on gas. The heating element is protected by a stainless steel housing, but is not intended for outdoor use. Housing can get hot during use, so avoid touching and keep it away from combustible materials. Heater is equipped with power connection cable and with threaded fittings for the different gas types. To provide a secure connection and prevent gas leaks, use new washers when changing cylinders.

APPLICATIONS

  • Gas cylinders, gas bundles, gas manifolds
  • Welding, medicine, packaging
  • Argon, Carbon Dioxide, Nitrous Oxide, Oxygen, Nitrogen

Technical data

Type of heating

Flow-through heaters

Material

Housing: Stainless steel
Heater: Stainless steel
Central tube: Stainless steel
Fittings: Nickel plated brass

Dimension

Housing: Ø89x95mm
Total length: 200mm
Weight: 1.50kg

Threaded fittings acc. to DIN 477-1:
Carbon Dioxide (CO2): W21.8x1/14"
Nitrous Oxide (N2O): G3/8"

Assembly

Mounting between the gas cylinder and the regulator, using threaded inlet connections

Connection

Cable with plug and armoured metal hose protection

Design

Standard range
Acc. to customer specification for special gas types

Others

Voltage: 230V
Power: 300W
Working pressure: Max. 200 bar
Flow of heated gas: Max. 70 l/min

Benefits

  • Completely enclosed heating element
  • Reducing the risk of regulator damage
  • Double temperature control prevents overheating
  • Rugged construction and increased safety
  • Better efficiency and long service life
  • Easy and safe to use
