Ceramic wire-wound resistors

High quality wire wound on ceramic core

DESCRIPTION

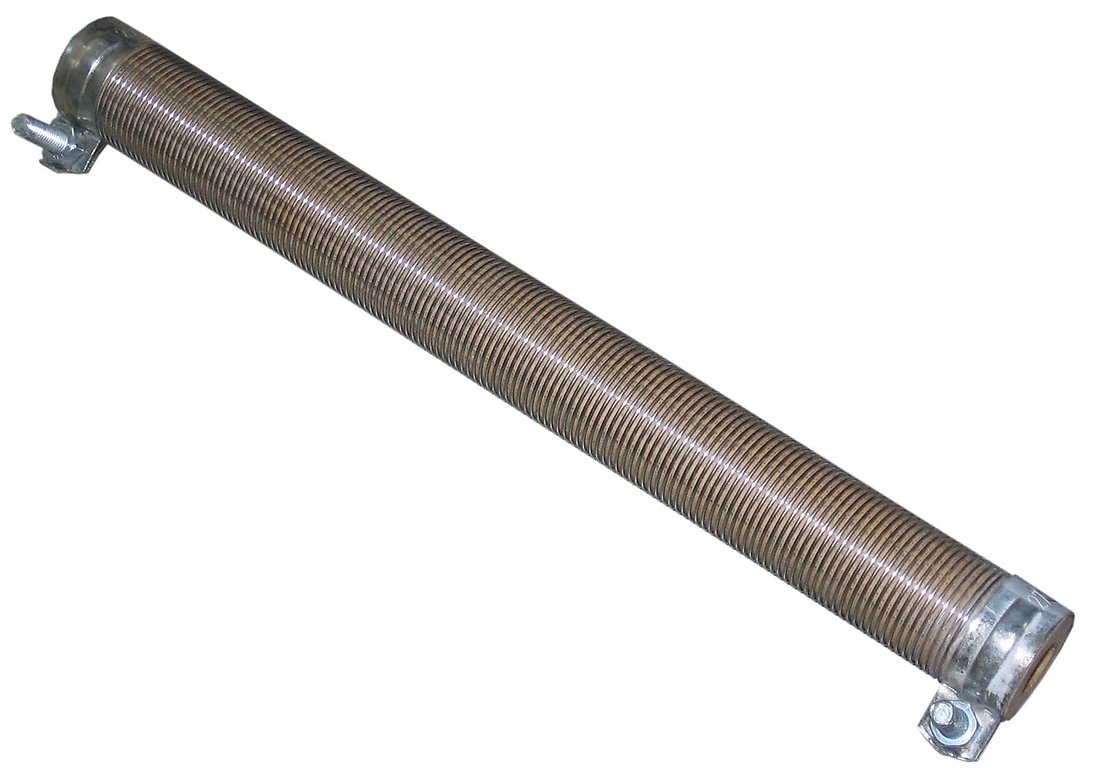

Ceramic wire-wound resistors consist of a resistance wire wound around a ceramic core. The shape of the resistor can be round or oval and is coated with an insulating material.
The ceramic resistors comply of one or multiple ceramic wire-wound resistors fitted with a protection grid and optional connection box and or thermal switch. We produce ceramic wire-wound resistors only to costumer's drawing, sample and to costumer's requirements.

APPLICATIONS

  • Brake resistors
  • "Snubbers" (attenuators in controlled and uncontrolled rectifiers)
  • Charging and discharging resistors
  • Starting of large electric motors

Technical data

Material

Cordierite
Porcelain

Dimension

Diameter: Ø10-Ø65mm
Length: 50-600mm

Acc. to customer specification

Assembly

Assembled into housing
Free standing in the air

Connection

Cables
Threaded pins M3, M4, M5, M6

Design

Resistors
Rheostats

Others

Voltage: 12-450V
Power: 40-2500W
Resistance: 1-2200 Ω

Protection class: from IP00 to IP20

Air cooling: natural or forced convection

Benefits

  • High quality materials
  • Wide range of dimensions
  • Custom made solutions
