Pressed-in elements

Customized tubular elements and optimal heat transfer

DESCRIPTION

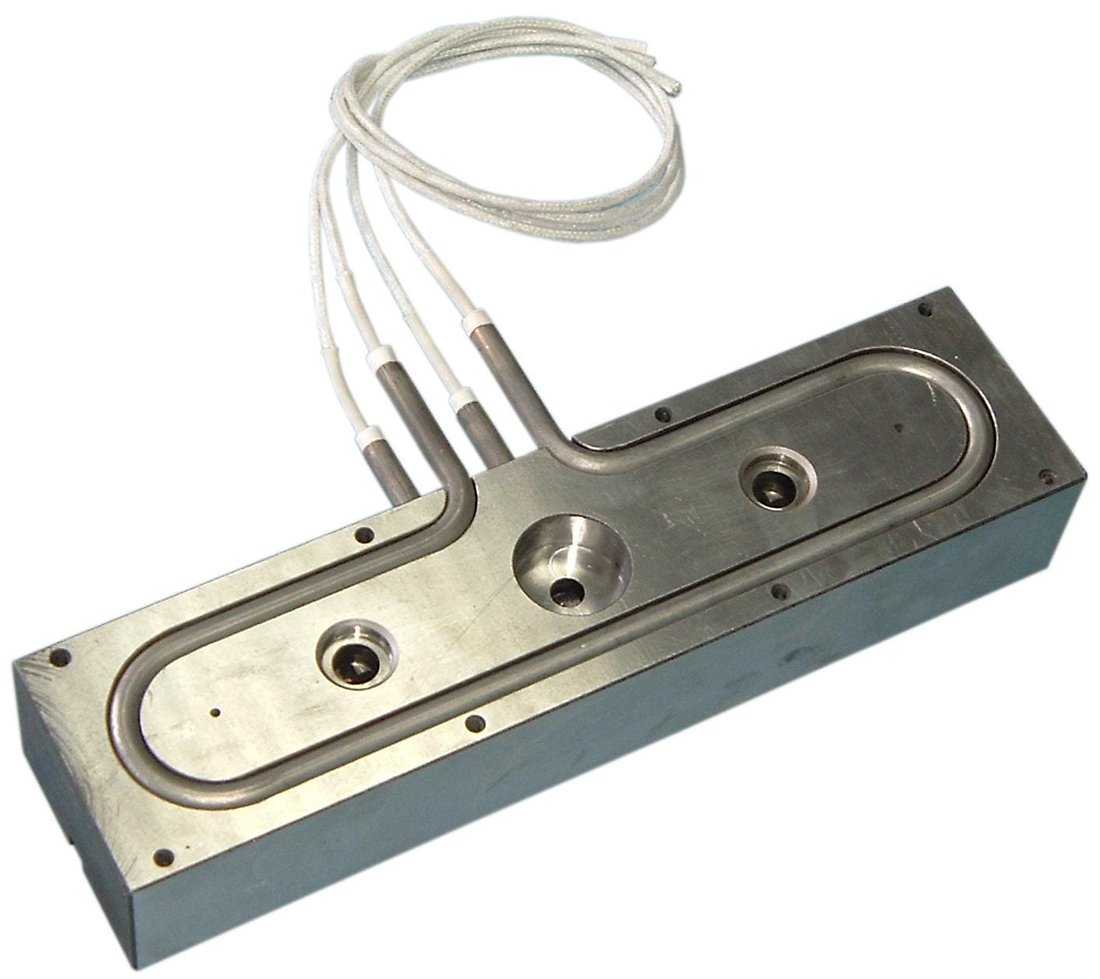

Traditional round tubular heaters can be bent in almost any required shape and pressed into grooves in steel, brass or aluminum bodies. The outer sheath fits tightly to the surface of the groove. This guarantees optimal heat transfer and long service life. Different geometry and dimensions, optimal thermal features, robust construction and low production costs are outstanding arguments for this type of heaters. Tubular heating elements are delivered in straight shape or bent according customers request.

APPLICATIONS

  • Plastic industry, mainfold heating, hot runner systems
  • Rubber industry, vulcanizing plates
  • Packaging industry, hot plates
  • Machinery industry, welding bars
  • Automotive industry

Technical data

Type of
heating

Heating of tools
Contact heating

Material

Tube material - Stainless steel:
AISI 321 / EN 1.4541

Dimension

Tube diameter: Ø6.5, Ø8.5 or Ø10mm
Length: 300-3850mm

Recommended groove dimensions:
for dia. Ø6.5: 6.8±0.05 mm
for dia. Ø8.5: 8.8±0.05 mm
for dia. Ø10: 10.5±0.05 mm

Assembly

Fixing to the object

Connection

M4, M5, tab terminal, spot welded cable, round pin

Design

Different shapes acc. to customer specification
Round cross section
With holes and slots for external temperature sensors

Others

Voltage: Max 400V
Surface load: up to 10W/cm²
Sheath temperature: Max. 600°C
Safety acc. to EN 60335-1

Alternative product: Cartridge heaters mounted into holes, Flexible tubular heaters with square or round cross section

BENEFITs

  • Optimised heat transfer
  • Improved durability
  • Various shapes, dimensions and connections
  • Rapid heating
  • Min. temperature difference between heater and heated tool
  • Savings in heating time and energy
  • Increased contact surface with the tool
