With or without thermostat

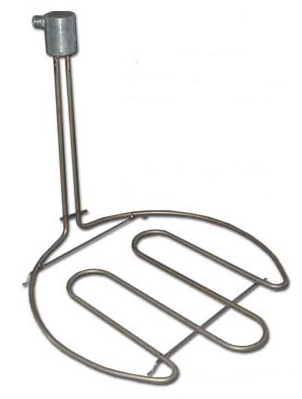

Tubular galvanic heaters are used for heating of fluids in electroplating baths and other industrial processes. Heaters consist of connection head (or protection cap, or housing), tubular heating element and connection cable. Also, we can produce heaters equipped with a thermostat. These heaters are shaped according to baths and installation method. The right choice of tube material depends on the chemical solution and the required temperature. Heated part must be fully immersed in fluid, while connection head must be out of fluid and away from vapors and steams. Liquid level controller and thermostat should be mounted on the bath.


  • Alkaline degreasing
  • Electro chemical degreasing
  • Alkaline electrolytes
  • Anodizing in chromic acid
  • Browning
  • Heating of water

Technical data

Type of

Liquid heating


Tube material:
Acid-proof stainless steel:
AISI 316L / EN 1.4404
AISI 316Ti / EN 1.4571
Incoloy 800 / EN 1.4876

Incoloy 825 / EN 2.4858
Titanium, EN 3.7035 Grade2, ASTM B338

Protective cap material:
Epoxy resin connection head
Polypropylene (PP)
Stainless steel AISI 304 / EN 1.4301


Standard range or acc. to customer specification

Element diameter: Ø8.5mm,Ø10mm
Element length: Max. 5200mm
Inactive length: 150-1000mm


Vertical position in the bath
Placed on the bottom of the bath


PVC cable 2m included


Tubular heating element (with or without thermostat)

Different shapes acc. to customer specification

One, two or three wattage ratings/element

Various types of mounting flanges


Voltage: 230V, 400V, 3x400V
Surface load and operating temperature depends on the application
Protection class: IP55 or IP66

Regulation: External or internal thermostat, Liquid level controller


  • Compact and robust design
  • Good mechanical properties
  • Long life product
  • Different shapes avaliable
  • Dimensions and power upon request
