Suspended WIRE HEATERS
Wide range of shapes and dimensions
DESCRIPTION

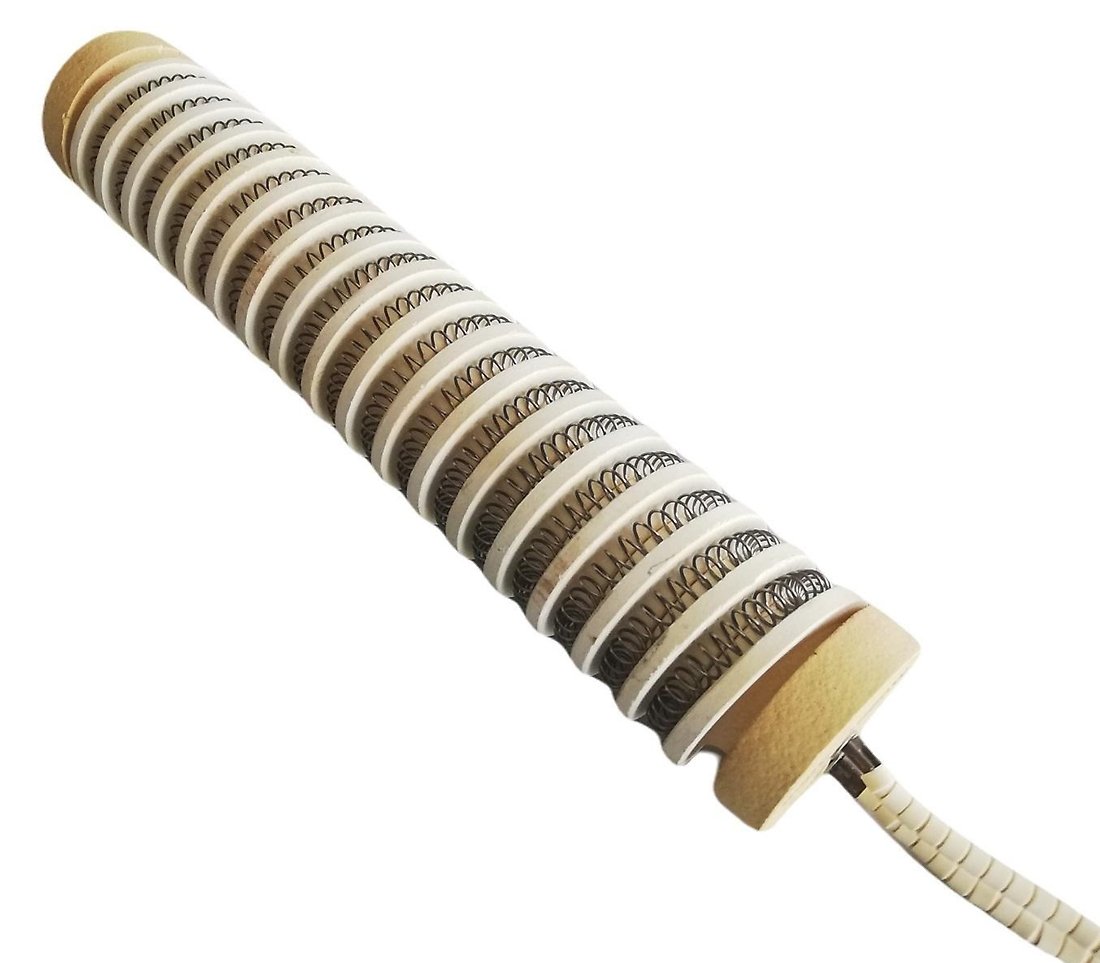

Suspended wire and coil ceramic heaters are used for indirect heating of liquids, direct heating of air or contact heating. For these applications, the ceramic element is usually mounted in a tube, fixing to the object or free standing in the air. Use of a fan is mandatory in some cases. Elektrotermija produces a wide range of different heaters on ceramic bodies according to customer specifications. Resistance wires or coils are situated on the surface, placed in longitudinal or helical holes or grooves on oval, rectangular, hexagonal... ceramic bodies or suspended on ceramic bearers. Groves can be open or closed. Heat is transferred by radiation, natural convection or forced convection.
APPLICATIONS
- Night storage heaters
- Industrial furnaces
- Bakery and bread ovens
- Dryers
- Fans
- Indirect heating of liquids
- Steam generators
- Duplicators, reactors
Technical data
Type of heating | Indirect - liquid |
Material | Cordierite C520 |
Dimension | Standard range or acc. to customer specification |
Assembly | Assembled into protective tube or housing |
Connection | M3, M4, M5, M6, tab terminals, round pins, connection wires, nickel wires with ceramic beads |
Design | Different shapes: Round, flat, sectional, brick, with ceramic bearers, bead insulated coils, string elements One, two or three wattage ratings/element |
Other | Voltage: Single phase, two phase, three phase |
benefits
- Dimensions, power and voltage upon request
- Different shapes acc. to customer specification
- Good heat transfer
- Fast warm up
- Economical, cost efficient
