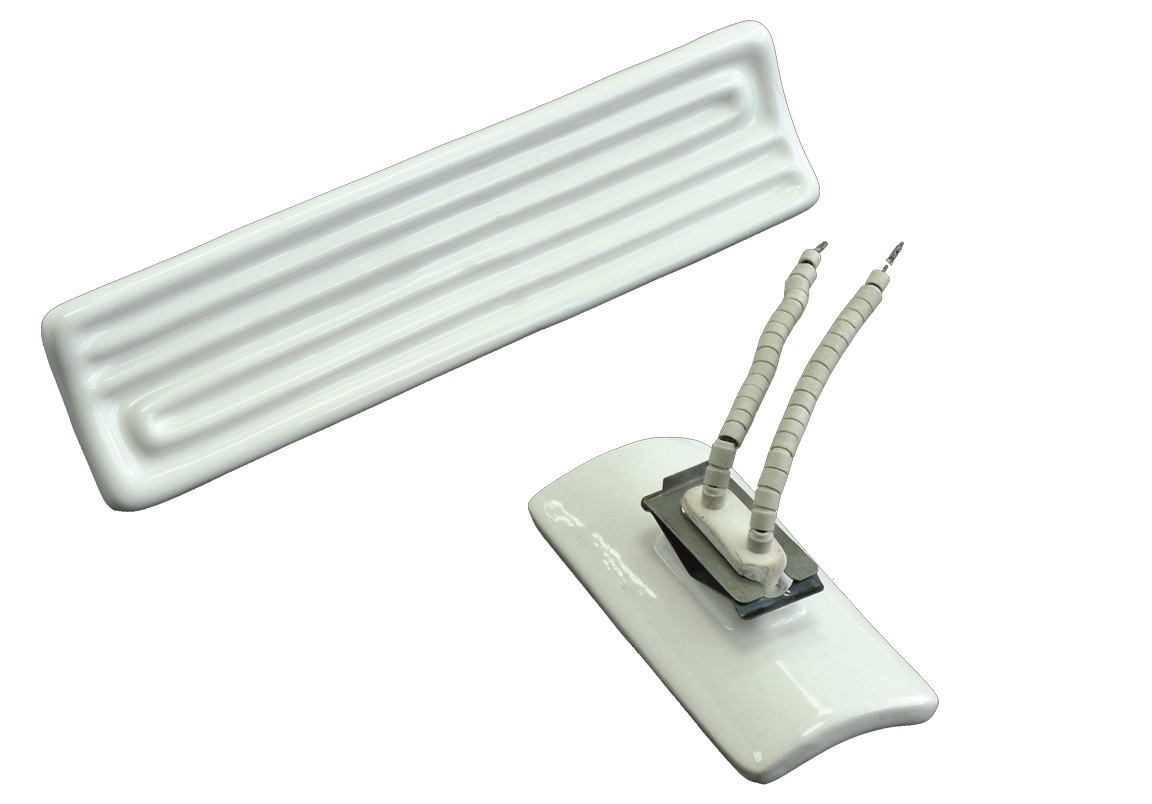

cERAMIC ir ELEMENTS
The most common IR emitters, long wave
DESCRIPTION
Elektrotermija offers ceramic infra-red heaters in several standard dimensions, 60x60, 122x60, 122x122, 245x60mm. Resistance coil is embedded in ceramic. Ceramic IR heaters are used in numerous industrial applications where long wave radiation is most effective heat transfer method. Versatility and modularity makes them excellent and cost affordable solution. We can provide heaters with thermocouples, mounting clips, reflectors, high temperature cables, terminal blocks and all you might need for your project.
APPLICATIONS
- Gluing
- Plastic forming
- Screen printing
- Sterilization
- Drying of varnish and printing
- Heating at animal breeding
- IR-heaters, IR-panels, saunas
Technical data
Type of heating | Infrared radiation - long wave |
Material | Ceramics |
Dimension | IR elements: 60x60, 122x60, 122x122, 245x60mm |
Assembly | Assembled into standard or custom made sheet metal reflector IR elements: Lock and spring washer |
Connection | Leads with ceramic beads length 100mm |
Design | Standard range IR ceramic elements: Trough, hollow, flat or curved With/without built-in thermo couple NiCr-Ni type K Standard color is white, yellow or black available on request |
Others | Wave length: 2-10 μm Accessories: Reflectors type RAS or PAS, Ceramic beads, High temperature cables up to 320°C, Two pole ceramic terminal blocks |
Benefits
- Can be used in vacuum
- Suitable when intermittent heating is required
- Uniform heating of large areas - IR panels
- Quick and efficient heating
- Easy assembly and disassembly
