Tubular elements water & liquids

Proven and safe technical solution

DESCRIPTION

Years of experience and constant production improving have resulted in wide range of different tubular electric heaters for water and liquids. Our tubular heaters are manufactured with special care and attention to details, starting from calculations, choice of right materials for specific need up to rigourous testing. Tubular heating elements are usually bend in U shape, multiple U shape, spiral or other and soldered, brazed or welded to nipples, flanges.
We produce tubular heating elements from copper or stainless steel tubes. Copper heating elements are still widelly used for water heating due to excellent physical characteristics of copper, corrosion resistance and durability over years. Stainless steel tubular heating elements are the most versatile and the most represented product of electric heating industry and are foundation for production of numerous heating systems such as immersion heaters, flow heaters, galvanic heaters and many, many more. All elements are tested according to EN 60335-1.

APPLICATIONS

  • Electrical water heaters, Solar water heaters, Heat pumps
  • Boilers, water tanks
  • Coffee machines
  • Washing machines/ Dishwashers
  • Horeca industry, Fryers
  • Steam generators, Duplicators
  • Industrial baths, Food industry
  • Towel heaters, radiators
  • Thermal oil, fuel oil, hydraulic oil

Technical data

Type of heating

Direct – heating element inserted in liquid
Indirect – heating element separated from
liquid

Material

Tube material:
Copper / C12200
Stainless steel:
AiSi 304 / EN 1.4301
AiSi316Ti / EN 1.4571
AiSi 316L / EN 1.4404
AiSi 321 / EN 1.4541
Incoloy 800 / EN 1.4876
Incoloy 825 / EN 2.4858

Nipple / Flange material: Stainless steel, Brass

Other materials available upon request

Dimensions

Standard range or acc. to customer specification

Tube diameter: Ø6.5, Ø8.5, Ø10, Ø12, Ø14mm

Assembly

Heating element with flange
Heating element with screw plug
Heating element with nipple
Immersion heater
Tubular galvanic heater

Connection

Direct connection for installation in equipment
M4, M5, M6, Tab terminals, Round pins, Cables,
Terminal box with/without temperature regulating device

Design

Single phase elements, Three phase elements

Numerous standard executions

Custom made elements as per customer request, drawing, sample, idea...

Different shapes acc. to customer specification

Others

Voltage: Max 480V, for higher values consult us
Surface load: Max. 25W/cm²
Dielectric strength: 1500V

Pressure test up to 10 bars
Protection class up to IP65
Safety acc. to EN 60335-1

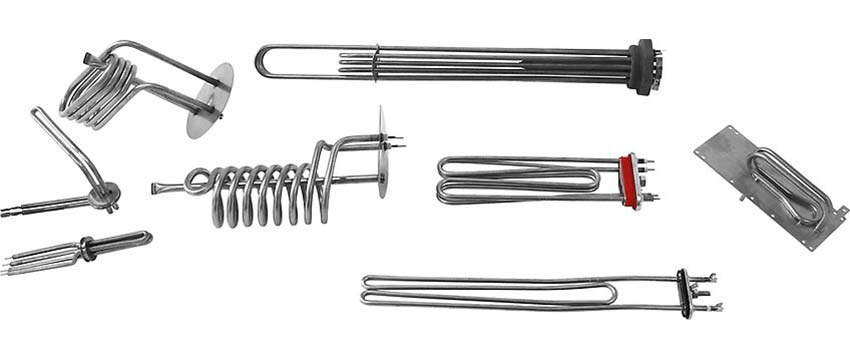

Product examples
