Nozzle & coil elements

Particularly suitable for installation in tight space

DESCRIPTION

Elektrotermija offers high quality nozzle and coil elements that assure the best performance and excellent safety. These elements are mainly used in the plastics industry. The possibility to reach high working temperatures in small spaces allows to support the most difficult needs. Our elements can be manufactured with different dimensions and powers, with or without built-in thermocouple. Various dimensions of standard types are always available from stock. Special types are available according to customer request.

APPLICATIONS

  • Hot runner systems
  • Injection machines, presses and nozzles
  • Plastic extruders, mainfold heating
  • Packaging equipment
  • Medical and laboratory equipment
  • Foundry technology
  • Various tools, general machinery

Technical data

Type of
heating

Contact heating

Material

Stainless steel or brass sheath

Dimension

Inner diameter: Ø10-Ø100mm
Length: 20-200mm

Assembly

Fixing to the object
Tightening by bolt or clamping jacket

Connection

PTFE teflon leads with silicone fiberglass sleeve
Nickel leads with braided metal sleeve

Design

Standard range or acc. to customer specification

Coil heaters or nozzle heaters

With or without built in thermocouple

Others

Voltage: 230V
Power: 80-840W
Power tolerance: ±10%

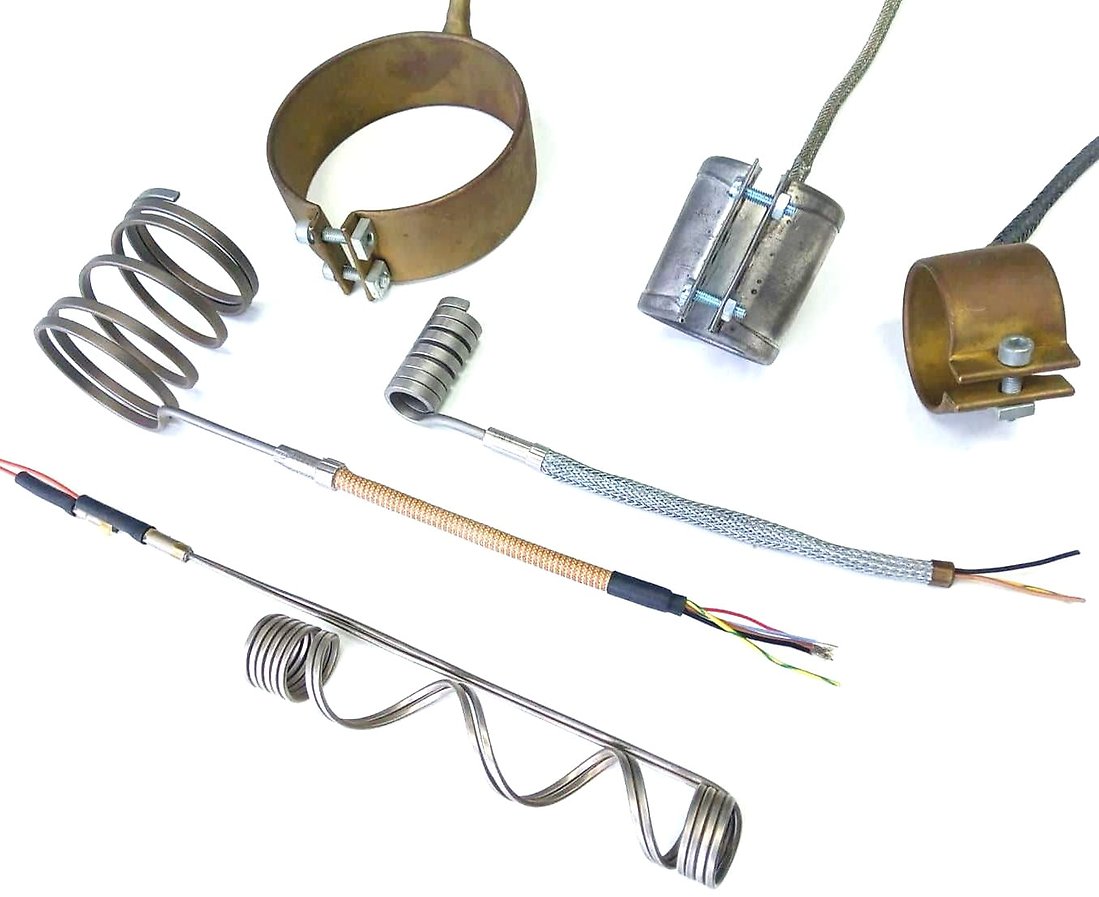

Product examples

COIL HEATERS

High performance in compact space

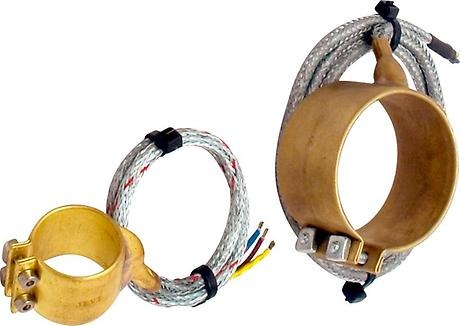

Nozzle heaters

Safe heating and good heat transmission
