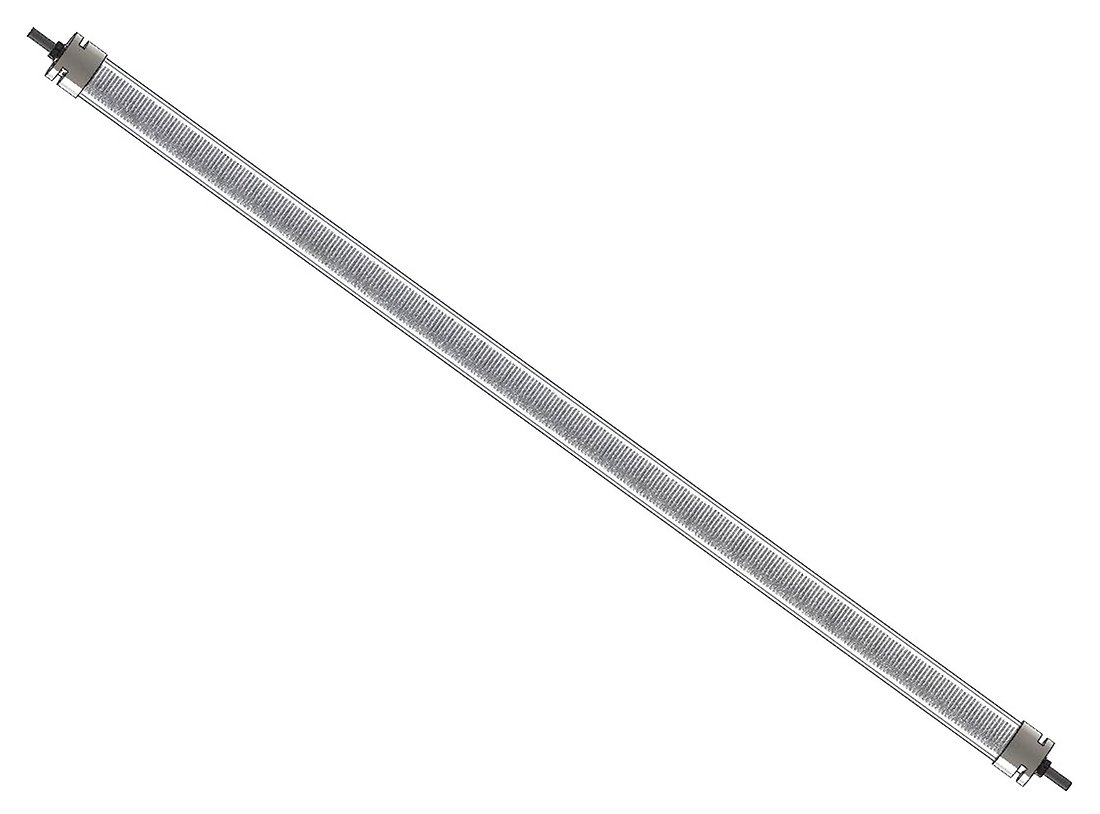

QUARTZ IR ELEMENTS
Traditional infrared heaters, middle wave
DESCRIPTION
Elektrotermija produces a wide range of straight quartz glass infrared heating elements. Almost 40 years of experience and wide range of diameters of milky quartz glass tubes allow us to answer to most demanding requests in short delivery terms. Affordable price, fast heat-up and reliability are advantages for many industrial processes such as textile and food industry. Heating coils can be wound in various grades (FeCrAl or NiCr alloys) and various shapes. We can provide ceramic beads, end blocks, high temperature cables and other accessories.
APPLICATIONS
- Glass processing industry
- Textile industry
- Electric space heaters
- Industrial proces heaters
- Refrigeration defrost heaters
- Microwave oven elements
- Domestic and commercial cooking grills
Technical data
Type of heating | Infrared radiation - middle wave |
Material | Quartz glass |
Dimension | Standard range or acc. to customer specification Tube diameter: Ø10, Ø12, Ø16, Ø20, Ø24mm |
Assembly | Free standing in the air |
Connection | Screws and nuts, tab terminals, nickel wires, connection wires with ceramic beads or silicon rubber hose |
Design | Single coil is standard, Twisted coil to prevent sagging |
Others | Wave length: 2-4 μm Accessories: High temperature cables, Ceramic beads, Two pole ceramic terminal block |
Benefits
- Very low thermal expansion rate
- Economical, cost efficient
- Dimensions, power and voltage upon request
- Resistance to high temperatures
- High efficiency and energy saving
- Light weight
- Can be used in vacuum and air flow environments
