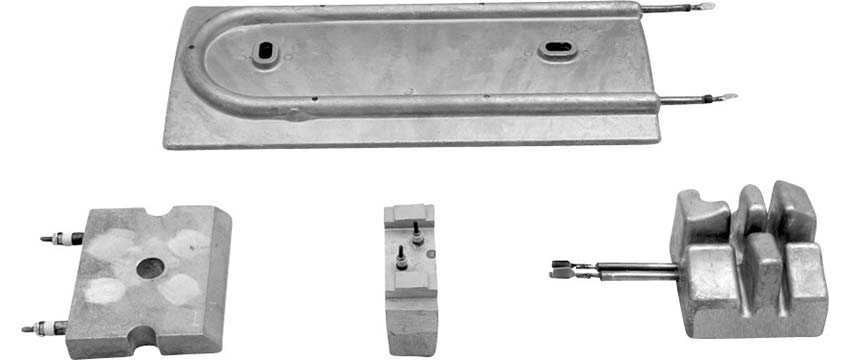

Cast-in & pressed-in elements

Individual pieces as well as serial production

DESCRIPTION

Heaters cast in aluminum body or heaters pressed into grooves in steel, brass or aluminum body enables even temperature and heat transfer on parts with large heating surface. Produced in different shapes and dimensions, according to customer specification. External thermostats, temperature probes or thermocouples are usually installed in the heater. The general recommendation is to place the thermocouples no further than 10mm from the heating element and, if possible, in the centre area.

APPLICATIONS

  • Plastic industry, plastic welding
  • Extruders
  • Packaging machines
  • Heating of tools or machine parts
  • Heating plates and heating shields
  • Rubber industry, vulcanizing plates
  • Automotive industry, motor heaters
  • Air heating, indirect oil and water heating

Technical data

Type of
heating

Heating of tools
Contact heating
Indirect liquid heating
Convection/air heating

Material

Body material: Different aluminum alloys, brass
Tube material: Stainless steel AISI 321 / EN 1.4541

Dimension

Acc. to customer specification
Element diameter: Ø6.5, Ø8.5 or Ø10mm

Assembly

Fixing to the object

Connection

M4, M5, tab terminal, spot welded cable, round pin

Design

Acc. to customer specification
One, two or more wattage ratings/elements
Different shapes
With holes and slots for external temperature sensors

Others

Safety acc. to EN 60335-1

Alternative product: Cartridge heaters mounted into holes, Flexible tubular heaters with square or round cross section

Product examples

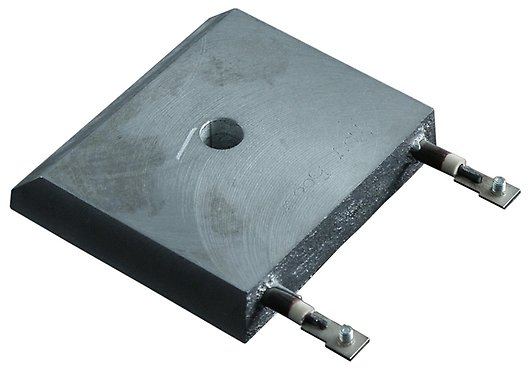

Cast-in elements

Tailor made elements to meet most demanding applications

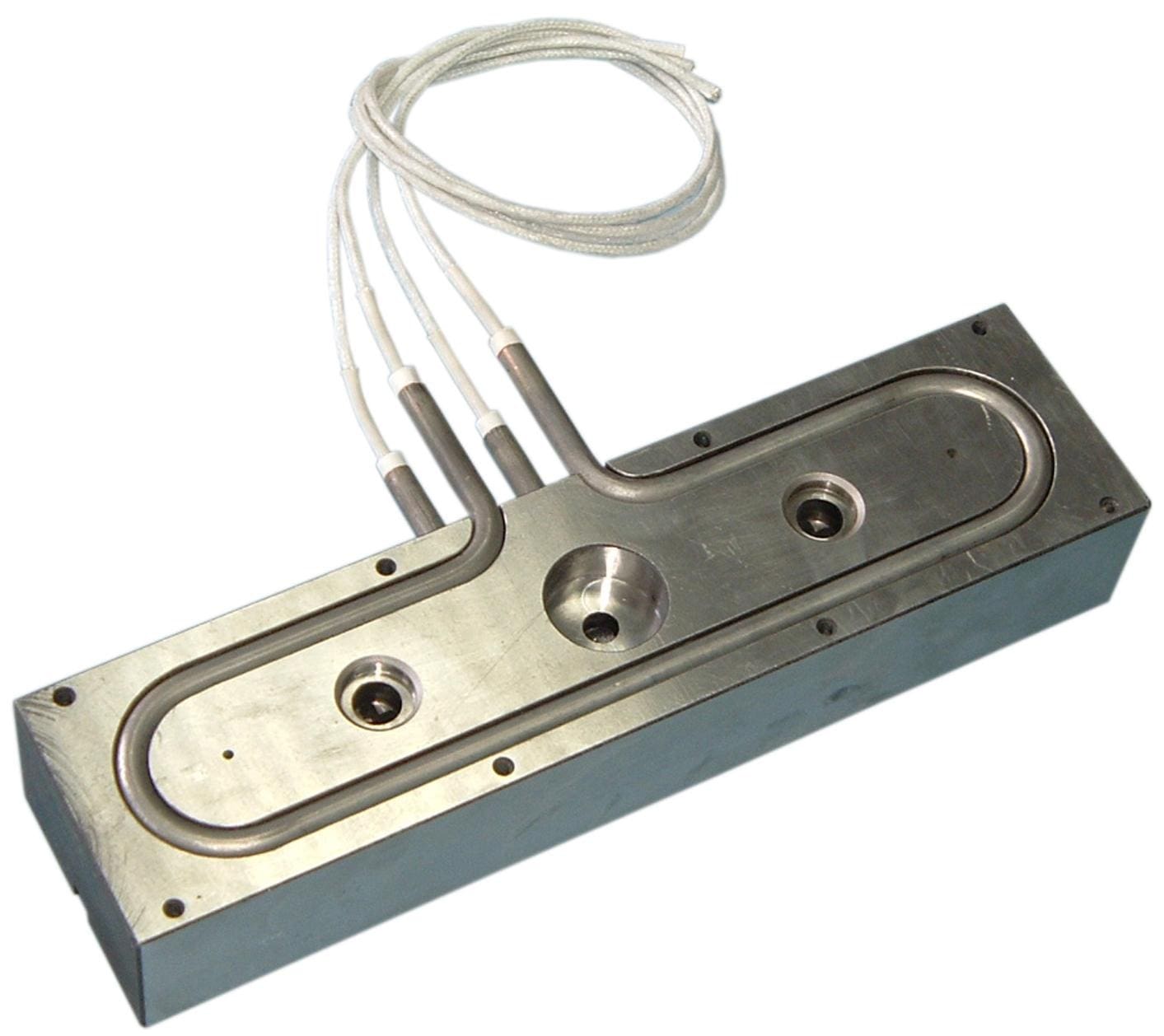

Pressed-in elements

Customized tubular elements and optimal heat transfer
