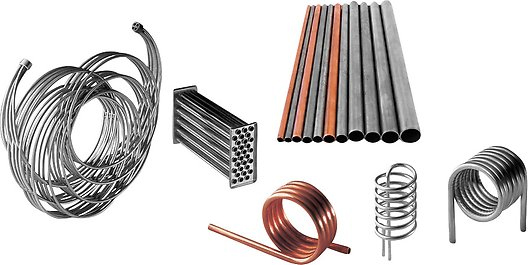

As a part of our element production, we can offer several grades and sizes of stainless steel tubes. We are happy to bend and cut the tubes according to your specific needs.
BACKER: WELDED TUBES
We manufacture stainless steel tubes for our own production of heating elements, as well as for other plants. The materials, dimensions, qualities etc. of the welded tubes are presented under Technical info. Wall thicknesses between 0.4 mm and 0.8 mm. In many cases we can tailor production to customer requirements, and in other cases we can process the tubes. For tubes used for pressure-bearing equipment we use material per SS-EN 10028-7. For other tubes per SS-EN 10088-2. Control per SS-EN 10233, SS-EN 10236, SEP 1915, SEP 1925. We can certify per AD2000-Merkblatt W2 on demand. Please contact us for further information.
BACKER TUBES: As a part of our element production, we can offer several grades and sizes of stainless steel tubes. We are happy to bend and cut the tubes according to your specific needs.
Stari katalog: For our production of electrical heating elements we make our own stainless steel tubing in our modern tube welding plant. The materials used, dimensions, qualities, etc., are shown in the table below. The thickness of materials lies between 0.5mm and 0.8mm. In many cases we can produce tubes to your requirements.
For our own production of heating elements we manufacture stainless steel tubes, we also produced for other plants. The materials, dimensions, qualitys, etc. are shown in the table beside. Wall thickness between 0.4mm and 0.8mm. In many cases we can produce according to customerrequirement and in some cases we also have the possibility to offer processing of the the tube. Please contact us for further information.
- Heat exchangers
- Empty tubes for making tubular elements
- Processed tubes.
Stainless steel, see below
304 (SS 2333)
316L (SS 2348)
(302B) (R 323)
S31254 (SS 2378)
316 SS 2347
Stainless steel, see table below
Ø 7.5 mm, 10 mm, 14 mm, 16 mm
Ø7.5mm, 10mm, 12mm, 14 mm, 16 mm
Straight tubes max. 6 m
Straight tubes of 6m length
EN 1.4301 AiSi304
